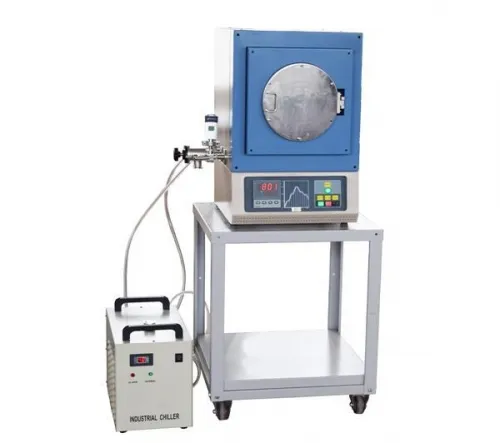

Compact vacuum chamber furnace with water cooling flange HS-1200X-H8

Working voltageAC220V,50/60HzChamber structureSwing side with water cooling flangeDisplayLCD Touch PanelLimited temper1150℃Working temperRm~1100℃Heating rate
Products Inquiry

Product Details

 Working voltage AC220V,50/60Hz
 Chamber structure Swing side with water cooling flange
 Display LCD Touch Panel
 Limited temper 1150℃
 Working temper Rm~1100℃
 Heating rate ≤20℃/min(suggestion：10℃/min）
 Chamber material Quartz chamber：Φ200*340mm
Heating zone：Φ190*215mm
 Heating element Ni-Cr-Al heating wire
 Thermcouple K type
 Accuracy +/-0.1℃
 Temper uniform 300-500℃:+/-5℃
 Chamber capacity 6L
 Control method Digital PID control,30 steps“time-temperature”control
 Over temper alarm yes
 Over current alarm yes
 Vacuum pump Pumping speed：4m3/h
Limited vacuum degree：6.0*10-2Torr
 Water cooling 10L/min
 Working voltage AC220V, 50Hz
 Warranty One year warranty with whole life technical supporting
