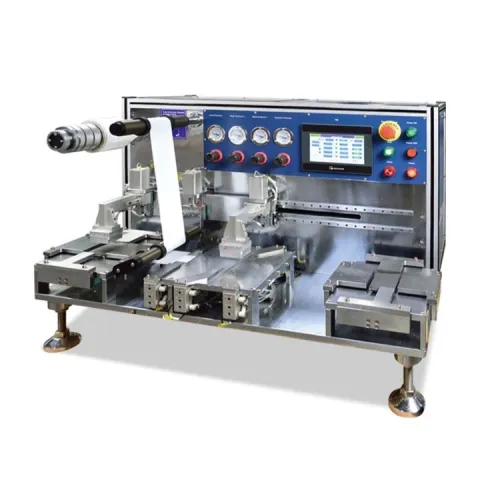

Semi-Auto Stacking Machine for Pouch Cell Electrodes - HS-111A-L
Introduction of semi-auto stacking machine
HS-111A-L is a desktop semi-auto stacking machine with advanced features to ensure a stable, repeatable
and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively
stacked with the separator film in between. Compared with HS-111A, it is more precise and consistant.
Advanced Features of semi-auto stacking machine
Consistent tension control for separator film delivery
"Z" fashion stacking with a separator via a foot-switch
Manual slidable fixtures enable accurate positioning and compactness of electrodes
Unreeling rotors for separator film feeding via adjusting fixture position
Can accept various size of electrode
Automatic counting & zeroing for the numbers of stack

Technical parameter of semi-auto stacking machine

Working Voltage	AC220V 50/60Hz
Stacking Electrode Size	230mm x 150mm Max. 44mm x 44mm Min.
Max. Electrode Thickness	Piled up thickness < 9mm
Aligning Accuracy	±0.3mm for stacked electrodes
Acceptable Separator Roll Size	220mm O.D Max.
Slidable Electrode Fixture	Two slidable fixtures ensure a compact, tight electrode stacking
Electrode Tongs	One electrode tongs is included for easy electrode pick-up
Suggested Air Pressure	0.6 - 1.5 MPa (Air compressor is not included in the standard package.
Product Dimensions	480mm(L) x 552mm(W) x 600mm(H)
Net Weight	50Kg
Shipping Weight & Dimensions	296 lbs, 40"x30"x36"
Compliance	CE Certified
Warranty	One Year limited warranty with lifetime support
