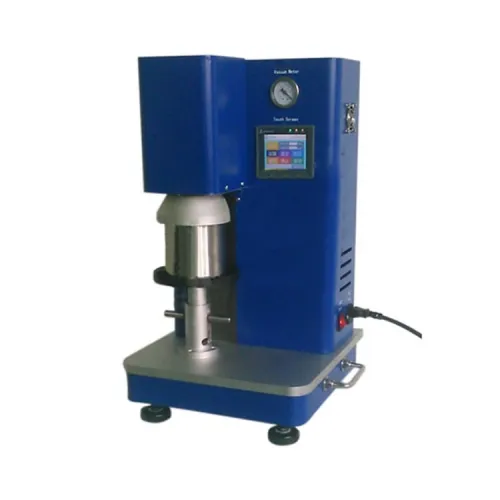

Small planetary vacuum mixer

This product is a high-efficiency device that integrates vacuum mixing and dispersing. It is suitable for the positive and negative electrode slurry mixing process during battery experiments, as well as the mixing of powdery materials and various ceramic materials. Since the agitation is completed i
Products Inquiry

Product Details

This product is a high-efficiency device that integrates vacuum mixing and dispersing. It is suitable for the positive and negative electrode slurry mixing process during battery experiments, as well as the mixing of powdery materials and various ceramic materials. Since the agitation is completed in the vacuum state, it is completely bubble-free, so the material filling and the density of the model are improved.

Specifications of vacuum mixer:
 Product name Small planetary vacuum mixer
 Product number HS-XJB
 Features

1. Design of forward and reverse stirring function, can realize high speed stirring of higher viscosity slurry, good stirring uniformity;

2. Vacuum environment, effectively eliminate the air bubbles generated during the stirring process, the machine comes with a vacuum system;

3. Multi-speed operation can be performed, and the stirring speed and time of each step can be set;

4. The equipment is equipped with a dual-shaft planetary stirring structure and a screw-type stirring paddle as standard. Different types and combinations of   mixing shafts are configured according to the size of the mixing tank;

5. Bracket design, easy to operate and ensure the safety of the vacuum stirring process;

6. Exquisite appearance, using three-dimensional geometric design, simple and beautiful;

7. Small dimensions can save space;
 Parameters

1. Stirring speed: Max 600 rpm;

2. Standard equipped with twin-screw screw paddles, others are designed   according to the tank body;

3. Multi-stage function: three-stage speed can be set;

4. Built-in vacuum pump, vacuum degree -0.08Mpa

5. Accessory volume: 500ml stainless steel vacuum mixing tank;

6. Stirring time: 0 ~ 600min can be set

7. Power supply voltage: AC220V

8. Rated power: 200W

9. Dimensions: about 330m × 320mm × 570mm (length × width × height);

10. Weight: about 35kg.
