Product Details

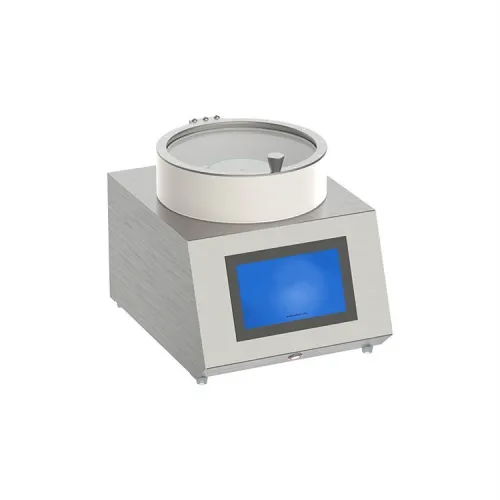

After being miniaturized, this model of spin coater adopts stainless steel structure, and the chamber is made of PP, which is beautiful and firm. The instrument adopts advanced precision motor, and the rotation speed can reach 10,000 rpm, which effectively guarantees the uniformity of the film formation. In addition, the instrument is controlled by a touch screen, which can preset a uniform curve, which greatly simplifies the use process and reduces the learning cost, which is very suitable for laboratory purchase.
Application of stainless steel case 8-inch spin coater:
The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films. It is mainly used in the fields of photoresist spin coating, biological medium production, and sol-gel method to produce polymer films.

Technical parameters of stainless steel case 8-inch spin coater :

Spin coater	Supply voltage	AC220V, 50Hz
	Rotating speed	0~10000rpm
	Acceleration	100~5000rpm/s
	Speed resolution	1rpm
	Step time	3000s
	Substrate size	Diameter ≤8 inches (200mm)
	Chamber material	PP
	Operation method	7 inch HD LCD touch screen
	Epoxy method	Manual dispensing, optional precision injection pump
	Homogenization curve	5 segments per curve, 5 curves can be stored in total
	Pumping interface	φ8mm quick-twist interface
	Overall size	290mm×365mm×260mm
	Total Weight	12kg
Exhaust system	Vacuum pump	Dry mechanical pump
	Pumping rate	1.1L/s
	Power supply	AC220V 50/60Hz
