Mini Arc Melting Furnace with Quartz chamber

1. Design melting sample amount ≦ 10g, temperature can reach 3000℃.

2. Adopt transparent quartz cavity (with protective cover), which can observe the melting situation of the sample at 360 °.

3. Water-cooled copper crucible.

4. The melting gun angle can be adjusted.

5. The vacuum interface is connected with a flexible bellows to ensure tightness.

1. Vacuum gauge

A mechanical pressure gauge is installed on the device to measure the pressure inside the chamber

Optional digital display anti-corrosion vacuum gauge

2. Arc power

Input voltage: 380VAC, three-phase

Max input current: 10A. (Requires a 40A air switch)

Output voltage / current: 22.6 V / 315A (DC)

Push button switch controls power output

3.Tungsten electrode

Equipped with a 4mm diameter tungsten electrode with water cooling on the head

Electrode gun angle adjustable for smelting multiple samples

Meltable sample amount <10 g, temperature reaches 3000 ℃

4.Crucible

Equipped with a water-cooled copper crucible with 4 work stations, each station is Φ25mm × 7mm

Copper crucibles of various sizes can be customized according to customer requirements

5. Chamber

Quartz chamber with Φ168 × 136mmH

Furnace size

Furnace body: 500 mm L × 450 mm W × 720 mm H

Power supply: 460mm L × 306mm W × 305mm H

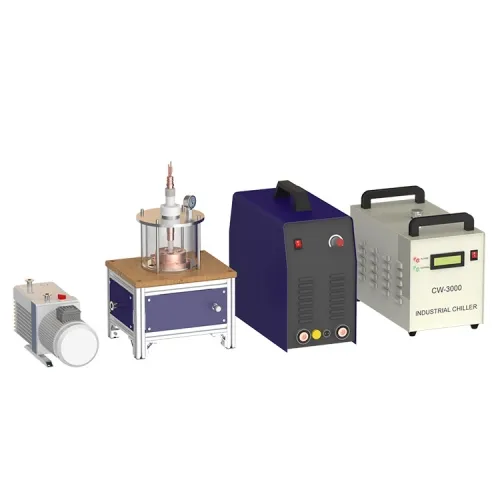

1 set Melting furnace host

1 Argon arc welder

1 Chiller

1 furnace frame

1 Vacuum pump

1. Vacuum pump (optional)

Optional various vacuum pumps

Vacuum degree: 10 ^ -2 torr (mechanical pump)

                           10 ^ -5 torr (molecular pump system)

2. Water chiller (optional)

When the equipment is running, cooling water is needed to cool the arc gun and the copper crucible. Optional circulating water chiller HS-5000 can be purchased from our company (water pipe specifications are 12mm outer diameter x 8mm inner diameter)
