Product Details

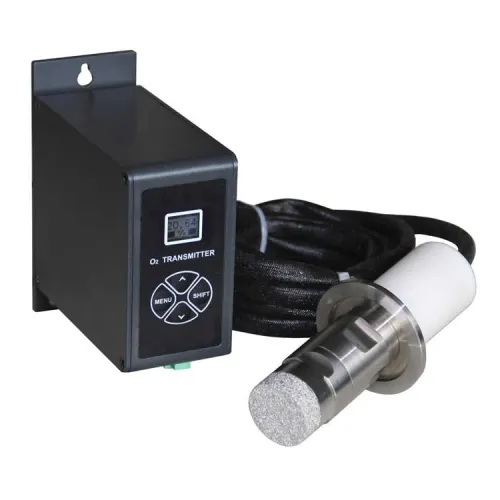

Wall mount oxygen transmitter is small in appearance and easy to maintain. It has the imported new zirconia detector with high sensitivity, fast response, long service life and easy maintenance.
Wall mount oxygen transmitter main features:
1.The calibration interval is long, high precision, stable and reliable;
2.High-precision temperature automatic compensation system to eliminate the influence of ambient temperature;
3.A little calibration in the air can meet the measurement accuracy of the entire range;
4. Wide range power supply, Eliminate the influence of power fluctuation on analyzer.

Wall mount oxygen transmitter technical parameters:

Measuring principle	zirconia
Display mode	no display (optional external display module)
Range selectable	0 ~ 10/100/1000ppm, 1.00%, 25.00% O₂
Resolution	0.1ppm
Measurement accuracy	0~1000ppm /1.00%/10.00% /25.00%≤±1% FS 0~100ppm ≤±2% FS 0~10ppm ≤±5%FS
Repeatability	≤±1%
Response time	T₉₀<15S
Analog output	4~20mA.DC (non-isolated output, load resistance less than 500 ohms) 1 way programmable dry contact passive alarm output, contact maximum capacity 220VAC/2A Display module interface
Communication method	RS485
Power supply	DC24V 1.5A
Sample gas temperature	-10 ~ +50℃
Sampling method	plug-in (diffusion)
Sample gas pressure	86-106KPa, regulated atmosphere
Sample gas component	no flammable gas, no corrosive gas, the amount of dust is less than 1mg/Nm³
Specification size	Transmitter 75mm × 162mm × 29mm (H × W × D)
Hole size	hole distance 151mm
Service life	>5 years (under normal use conditions)
Gas circut interface	Φ6 plastic tube quick screw
Installation method	transmitter wall mount, oxygen sensor probe plug-in installation

Disclaimer: The product introduction content (including product images, product descriptions, technical parameters, etc.) of this site is for reference only. As the update may not be timely, there will be some differences between the content and the actual situation. Please contact our sales staff to confirm. The information provided on this site does not constitute any offer or promise, and the company will improve and modify any information on the website from time to time without prior notice.
