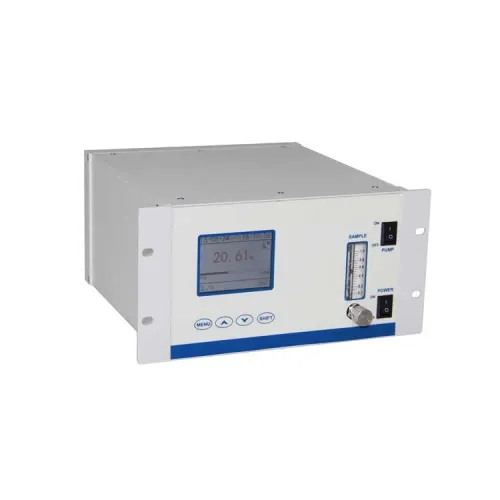

Oxygen analyzer for wave soldering and reflow soldering

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Oxygen analyzer has friendly communication menu which makes the operation visual and simple. It could keep working in the air for a long time without affecting the sensor life. The response speed is rapid and the lowest measurable unit is 0.1ppm. Power being supplied at a wide range makes it more suitable for different occasions.
Oxygen analyzer main features:
1.The imported zirconium dioxide sensor is with high measurement accuracy, a rapid response speed and long calibration cycle for features;
2.Only one random point needs to be calibrated among the whole measured range, making the calibration operation simple and convenient;
3.Function of built-in compensation system for temperature could reduce the influence from the changes of environment temperature on the measured accuracy;
4.No reference gas is needed, and the analyzer wouldn’t be affected by the oxygen concentration of working around atmosphere;
5.It could do one-way or bidirectional communication with the upper computer;
6.The imported sampling pump is built in and the working mode can be set through the software.

Oxygen analyzer technical parameters:

Test principle	zirconium dioxide
Display mode	128×64 matrix dot LCD
Test range	0 ~ 10/100/1000ppm / 1.00% / 25.00% O₂
Resolution	1ppm
Accuracy	0~1000ppm /1.00% / 10.00% / 25.00% ≤±1% FS 0~100ppm ≤±2% FS 0~10ppm ≤±5%FS
Repeatability	≤±1%
Response time	T₉₀≤30S
Analog output	4~20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm） 0~10V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication port	RS232 (default) or RS485
Power supply	AC85 ~ 264V 50/60Hz
Temperature of the sample gas	-10 ~ +50℃
Sample gas flow	400 ~ 600ml/min
Sampling mode	extraction way, ejection way, extraction and ejection way
Sample gas pressure	micro positive pressure, micro negative pressure or normal pressure
Background gas	N₂and inactive gaseous mixture
Appearance Size	133mm×268mm×300mm(H×W×D)
Install Hole Cut	135mm×228mm(H×W)
Serving life	＞4 years(under normal use)
Gas circuit port	NPT 1/8 internal thread
Install mode	frame mount
