Oxygen Analysis System

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

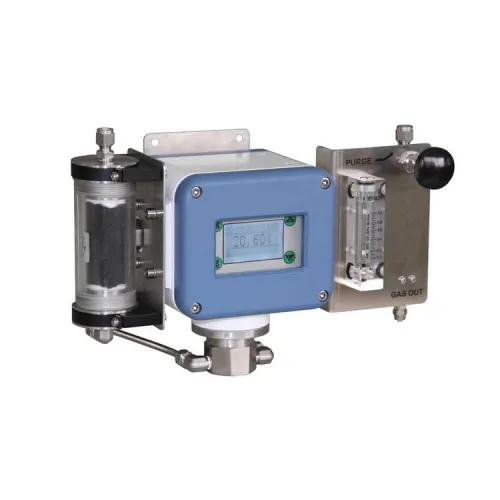

Oxygen analysis system uses imported special materials to effectively absorb the toxic components in the sample gas and send them to the explosion-proof oxygen transmitter, thus ensuring the service life and accuracy of the explosion-proof oxygen transmitter. The user can control the corresponding nitrogen supply device by collecting the oxygen concentration value measured by the system, thereby reducing the concentration of flammable and explosive gas in the centrifuge and the reaction kettle, thereby providing safety for production.

Oxygen analysis system technical parameters:

Test principle	Fuel cell
Display mode	128×64 matrix dot LCD
Test range	0 ~ 5/10/25.00% O₂ (Different ranges are available: trace or constant)
Accuracy	≤±1%FS
Repeatability	≤±1%
Error	＜±1.2%FS
Response time	T₉₀≤60S
Analog output	4~20mA.DC (non-isolated output, load resistance less than 500 ohms) 2-way programmable dry contact passive alarm output, contact maximum capacity 220VAC/2A
Power supply	DC24V/0.5A
Sample gas temperature	0 ~ 50℃
Environment humidity	＜80％RH
Sampling mode	straight-through type
Sampling pipeline	Φ6mm316L seamless stainless steel tube, PTFE tube
Sample gas flow	600 ~ 800ml/min
Sample gas component	No strong corrosive gas, the amount of dust is less than 1mg/Nm³
Preprocessing level	Ⅰlevel
Working pressure	90~110KPa, Stabilized atmosphere (absolute pressure)
Size	213mm×315mm×155mm（H×W×D）
Install Hole Cut	135mm×80mm（H×W）
Serving life	＞24 months (under normal use)
Install mode	Wall-mounted
Explosion-proof grade	Exd IIB T4
Note	1.The above technical parameters are written with constant oxygen as the standard. If you measure trace oxygen, please contact our company for relevant technical parameters. 2.Different ranges of oxygen transmitters can be equipped according to different field requirements, namely: trace oxygen system and constant oxygen system; 3.According to different field, The corresponding sampling system and the positive pressure, micro positive pressure and micro negative pressure sampling system can be designed.
