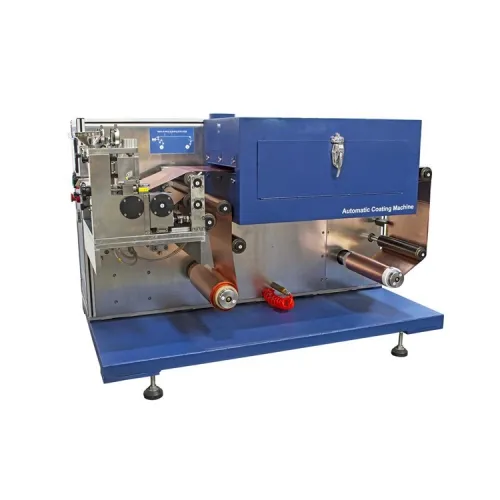

Compact automatic battery electrode coating system

Compact automatic battery electrode coating system integrates the functions/features of reeling in & out, slurry feeder, coating blade, baking oven, and final electrode winding (reeling in). It can coat electrode sheets up to 160mm in width and 500 meters in length automatically.Compact automati
Products Inquiry

Product Details

Compact automatic battery electrode coating system integrates the functions/features of reeling in & out, slurry feeder, coating blade, baking oven, and final electrode winding (reeling in). It can coat electrode sheets up to 160mm in width and 500 meters in length automatically.

Compact automatic battery electrode coating system specifications:
 Working Voltage 208 – 240VAC, 50/60Hz,  Single phase
 Max. Power Consumption 3 KW
 Coating Thickness   Precison +/- 0.006   mm
 Coating Width 50-160 mm Adjustable
 Coating thickness Usually 30~200μm Depends on different slurry viscosity
 Coating Speed 0-200 mm/minute
 Drying Oven   Temperature 40-150°C +/- 1°C
 Reel-out/in System 50mm (ID)
 Max. Rolled Diameter 200mm (OD)
 Max. Coating Length · Depending on the coating and substrate thickness.
· Typically, 10um thick foil with 100um coating can get 500 meters of electrode length coated per run
 Slurry Stirring SS316 Moving Rod
 Dimensions

1000mm(L) x 650mm(W) x 650mm(H) – footprint

The R2R coater can be placed into a glove-box for air sensitive   material
 Net Weight 400 kg (882 lbs)
 Warranty · One year limited warranty with lifetime support
· Rusting and damage due   to improper storage condition or maintenance are not covered by warranty
 Application   Notes Please use Acetone to clean and dry the doctor blade, slurry feeder, and roller to avoid rusting.
