Product Details

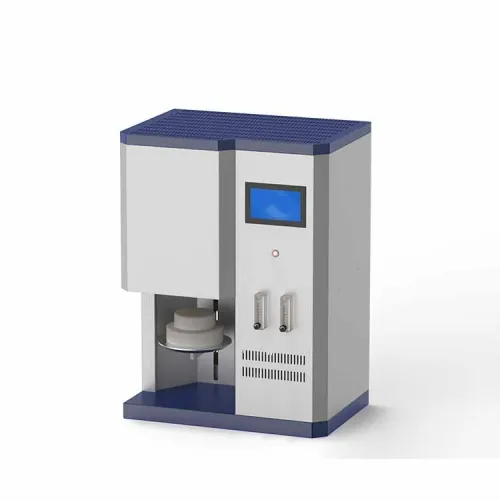

Multi-function sintering furnace adopts 1800℃ pure heating element and is heated on four sides. The furnace is equipped with a dedicated exhaust vent, which uses flue gas emissions to prevent crown pollution. The shape of the furnace is simple and the workmanship is fine. The double-layered liner structure is scientific and reasonable, energy-saving and environmentally friendly. It has been used by many denture processing factories at home and abroad and has received unanimous praise.
Scope of application: zirconia dental crown sintering and soft metal dental crown sintering.

Multi-function sintering furnace technical parameters:

Model	HS-B1700X
Chamber structure	Lifting type, lift mechanism mute processing
Chamber size	Φ120×120mm
Chamber volume	1.4L
Chamber material	Imported alumina fiber
Operating mode	HD full color LCD touch screen
Working temperature	0～1650℃
Heating rate	≤30℃/min
Heating zone	Single heating zone
Temperature accuracy	±1℃
Temperature control	50 Steps programmable and PID automatic control
Heating method	Four-sided heating
Temperature measuring element	B-type thermal couple
Gas	Pure air and inert gas, program automatically controls switching
Gas interface	1/4" ferrule connector (Ø8 pagoda-shape connector)
Power supply	AC: 220V 50/60Hz
