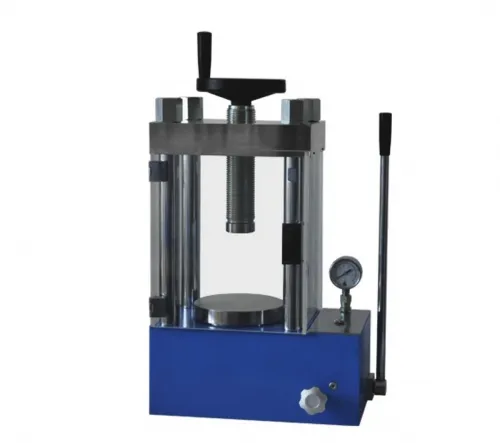

60T Laboratory Manual Hydraulic Press with PMMA Cover HS-PC-60F

Model No.HS-PC-60FPressure gauge0~60T (0~34MPa)Piston diameterΦ150mmMain structureAll in one structure, no oil link pointPressure gaugepointer pressure gauge, can replace digita
Products Inquiry

Product Details

 Model No. HS-PC-60F
 Pressure gauge 0~60T (0~34MPa)
 Piston diameter Φ150mm
 Main structure All in one structure, no oil link point
 Pressure gauge pointer pressure gauge, can replace digital gauge
 Max piston distance 50mm
 Protective cover PMMA
 Pressure stability ≤1MPa/10min
 Working stage Φ160mm
 Working space 185*250mm
 Outer dimension 405*240*565mm
 Gross Weight 75kg

60T hydraulic press pressure conversion
 Real Pressure System Pressure
 1T 0.56MPa
 3T 1.7MPa
 5T 2.8MPa
 10T 5.6MPa
 20T 11.3MPa
 30T 17MPa
 40T 22.6MPa
 50T 28.3MPa
 60T 34MPa
