Product Details

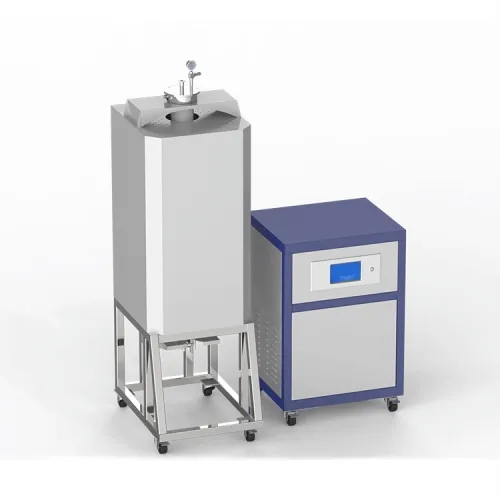

The HS-T1700-100I-TV is a fluidized bed vertical CVD system specially designed for powder experiments. The tube is a high-purity corundum tube with a microporous ceramic plate embedded inside the furnace tube. The powder can be placed on the microporous ceramic plate, gas is introduced from the lower end of the furnace tube, and the sample powder was suspended in the heating zone through a microporous ceramic plate to carry out an experiment. The instrument adopts advanced PID intelligent temperature control, and the temperature control accuracy is ±1℃. The control interface is a 7-inch high-definition true color LCD touch screen, graphic display, visual operation interface, easy to operate and intuitive to use, can greatly improve your experimental efficiency.
The application field is powder experiment.

Vertical fluidized bed tube furnace technical parameters:

Model	HS-T1700-100I-T-V
Furnace tube material	High purity alumina
Furnace tube diameter	100mm
Furnace tube length	1200mm
Furnace chamber length	900mm
Heating zone length	600mm
Constant temperature zone	300mm
Operating temperature	≤1700℃
Temperature control accuracy	±1℃
Temperature control mode	30 or 50 segment program temperature control
Display mode	LCD touch screen
Sealing method	304 stainless steel vacuum flange
Flange interface	1/4" ferrule connector (Ø8 pagoda-shape connector); KF16 vacuum port
Vacuum	4.4E-3Pa
Power supply	AC:220V 50/60Hz
Rated power	10KW
