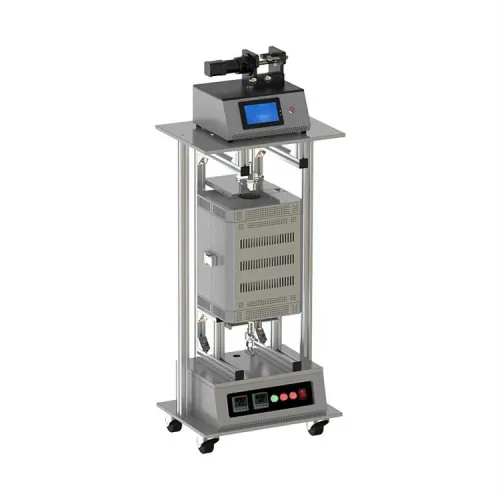

Bridgman crystal growth furnace HS- O1200-60II-T-BMGH

Bridgman crystal growth furnace is used to grow small size crystals in the atmosphere-protected environment or sealed quartz crucible environment. The growth furnace adopts tube structure and has three zones: a heating zone, a gradient zone and a cooling zone, each of which uses PID independent temp
Products Inquiry

Product Details

Bridgman crystal growth furnace is used to grow small size crystals in the atmosphere-protected environment or sealed quartz crucible environment. The growth furnace adopts tube structure and has three zones: a heating zone, a gradient zone and a cooling zone, each of which uses PID independent temperature control. The suspension wire is made of platinum wire, which can withstand temperatures up to 1600℃. The lifting motor uses a stepper motor with the speed range of 0.03mm / h to 90mm / h. It can be adjusted to meet the needs of various crystal growth.
Bridgman crystal growth furnace application range:
The field of use is for the growth of small size crystals in the atmosphere-protected environment or sealed quartz crucible environment.

Bridgman crystal growth furnace technical parameters:
 Model HS- O1200-60II-T-BMGH
 Furnace tube material High purity quartz
 Furnace tube diameter 50mm
 Furnace tube length 540mm
 Furnace chamber length 280mm
 Heating zone length 100mm+100mm
 Operating temperature 0～1100℃
 Temperature control accuracy ±1℃
 Temperature control mode 30 or 50 segment program temperature control
 Display mode LCD touch screen
 Sealing method 304 stainless steel vacuum flange
 Flange interface 1/4" ferrule connector (Ø8 pagoda-shape connector)
 Vacuum 4.4E-3Pa
 Rated power 4.5KW
 Power supply AC:220V 50/60Hz
 Precision lifting machine

Speed range: 0.03~90mm/h (adjustable)

Total travel: 900mm

Motor power: 30W
