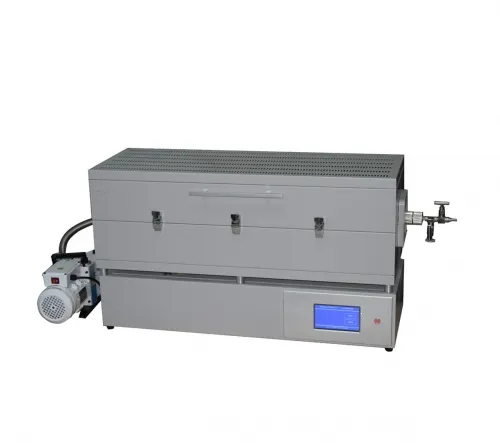

HS-O1200-25IIIT Three Heating Zone Tube Furnace with 7"PID Temperature Controller HS-O1200-25IIIT

HS-O1200-25IIIT is a compact 25mm tube furnace with imported heating wire.The temperature of the furnace is controlled by a 30 segment programmable high precision SCR (Silicon Controlled Rectifier) digital controller with7” touch panel. It is widely used in CVD method MoS2 thin film preparatio
Products Inquiry

Product Details

HS-O1200-25IIIT is a compact 25mm tube furnace with imported heating wire.The temperature of the furnace is controlled by a 30 segment programmable high precision SCR (Silicon Controlled Rectifier) digital controller with7” touch panel. It is widely used in CVD method MoS2 thin film preparation, nanotube producing,small sample annealing etc.
 Model No. HS-O1200-25IIIT
 Display 7” LCD Touch Panel
 Limiting temperature 1150℃
 Working temperature Rm~1150℃
 Heating rate 0-20℃/min
 Heating Zone length 200+400+200mm, constant temperature zone:350mm
 Corundum tube diameter OD25*1000mm,50/60/80/100/120mm for option
 Temperature accuracy ± 1℃
 Heating element Aludrome
 Thermal couple K TYPE
 Cooling method Double layer structure with fan cooling
 Temperature control 30 steps programmable PID control
 Chamber material Alumina fiber
 Over-temperature alarm Yes
 Over-current alarm Yes
 Sealing flange S.S vacuum flange
 Cooling method air forced cooling
 Gas mixer One way with Float Flow Controller
 Main Power 4.5Kw
 Working voltage AC220V,50Hz
