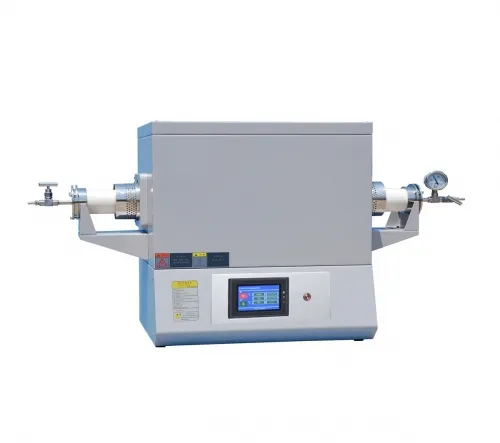

Laboratory 1700℃ High Temperature Vacuum Tube Furnace with O.D80*1000mm Heating zone HS-T1700-80IT

Model No.HS-T1700-80ITDisplay7”LCD Touch PanelLimiting temperature1650℃Working temperature≤1600℃Heating rate0-20℃/minHeating Zone length300
Products Inquiry

Product Details

 Model No. HS-T1700-80IT
 Display 7” LCD Touch Panel
 Limiting temperature 1650℃
 Working temperature ≤1600℃
 Heating rate 0-20℃/min
 Heating Zone length 300mm, constant temperature zone150mm
 Corundum tube diameter OD80*1000mm
 Temperature accuracy ± 1℃
 Heating element High Purity MoSi2 Rod
 Thermal couple B TYPE
 Cooling method Double layer structure with fan cooling
 Temperature control 30 steps programmable PID control
 Chamber material Alumina fiber
 Over-temperature alarm Yes
 Over-current alarm Yes
 Sealing flange S.S vacuum flange
 Cooling method air forced cooling
 Gas mixer One way with Float Flow Controller
 Main Power 4.5Kw
 Working voltage AC220V,50Hz
