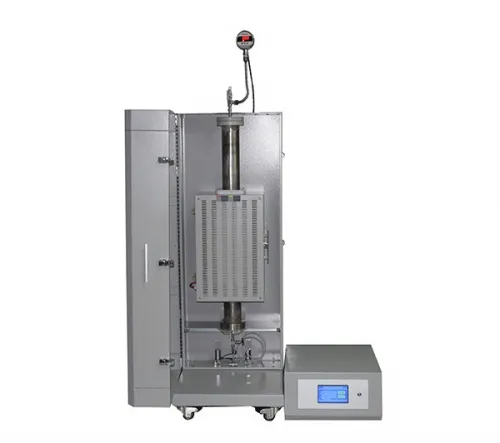

HS-1200X-I-HPV Tube Furnace

High temperature high pressure vertical tube furnaceTube MaterialSS310S Stainless Steel alloyO.D80mm x I.D70(±2) mmO.D60mm xI.D50(±2) mmNi based super-alloy GH747OD 60mmx ID 52mmCopper gasket

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

High temperature high pressure vertical tube furnace
Tube Material	SS310S Stainless Steel alloy O.D80mm x I.D70(±2) mmO.D60mm x I.D 50(±2) mm	Ni based super-alloy GH747OD 60mm x ID 52 mm
Copper gasket	O.D80mm tube:Gasket 99 O.D x 82 I.D x 2.2mm O.D 60mm tube: 82 O.D x 63.6 I.D x 2.2mm	For 60mm O.D tube: 82 O.D x 63.6 I.D x 2.2mm
Working Pressure vs. Working Temperature	577 PSI max at ≤500°C511 PSI max at ≤600°C428 PSI max at ≤700°C363 PSI max. at ≤800°C185 PSI max at ≤900°CAttention: Never heat up above 900°C	725 PSI (5Mpa) max. at ≤800°C 435 PSI (3Mpa) max. at ≤900°C217 PSI (1.5Mpa) max. at ≤1000°C145 PSI (1Mpa) max. at 1100°C Attention: Never heat up above 1100°C
Pressure Measurement Range	0~15Mpa	0~15Mpa
Max. Heating Temperature	900°C	1100°C
Working Gases	Inert gas & Hydrogen	Inert gas, hydrogen and oxygen
Heating Temperature	800°C continuous	1100°C max.for < 1hr 1000C for continuous
Heating Rate	≤30°C/min	≤20°C/min
Heating Element	Fe-Cr-Al Alloy doped by Mo	Fe-Cr-Al Alloy doped by Mo
Heating Zone	Total length: 440mm Single zone Constant temp. zone: 150mm ±1°C, or as customized
Temperature Control	PID control method with over-temp protection Temperature stability: ±1°C
Thermocouple	Omega 3mm OD K Type with high temperature tolerance (220°C) connector
Positive Pressure Sensor	Installed in high pressure flange
PC control	Yes
Pressure Alarm System	Upper limit and lower limit control method Alarm strob and warning whistle
Voltage	AC 220V 50/60Hz, or as customized
Power	2.5KW(20A breaker required)
Warranty	One year limited manufacturer warranty with lifetime support (Consumable parts such as processing tubes, o-rings and heating element are not covered by the warranty).
