1200W Ultrasonic Processor for Dispersing, Homogenizing and Mixing Liquid Chemicals

Basic InfoModel NO.: HS-USP-12NStructure: DesktopCertification: CEType: Ultrasonic PrecessorTransport Package: Ply Wooden CartonHS Code: 8479820090Customized: CustomizedMaterial: SteelApplication: School, LabTrademark: CYKYOrigin: Zhengzhou, ChinaProduct Description

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: HS-USP-12N
Structure: Desktop
Certification: CE
Type: Ultrasonic Precessor
Transport Package: Ply Wooden Carton
HS Code: 8479820090
Customized: Customized
Material: Steel
Application: School, Lab
Trademark: CYKY
Origin: Zhengzhou, China

Product Description

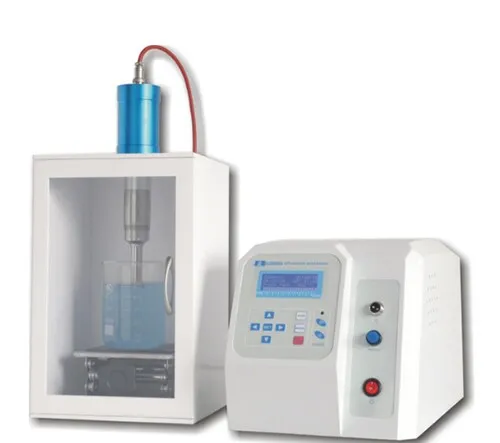

HS-USP-12N is Desktop High Power Ultrasonic Processor with a quality sound-proof chamber and stainless steel elevating platform. It is designed for dispersing nano-powder in liquid, homogenizing liquid phase from co-precipitation and mixing multi-chemical in one solution more efficiently than any other method. It is an ideal tool for preparing the new generation of LED phosphor, Li-ion battery slurry,Nanostructure Growth and quality thin film by sol-gel method.

SPECIFICATIONS

Voltage	220VAC, 50-60Hz
Output Power in Ultrasonic Processor	1200 W Max, 20 kHzMax. Dipping depth of ultrasonic processor rod: 30 mm
Processor Head	Made of Ti metal12 mm diameter (standard)Weight: 400gLiquid handling: 100 mL - 2000 mL
Timer & Temperature control	Digital Timer is displayed by LC panelAdjustable from 1 second to 99 hoursTemperature sensor is included to protect sample from over-heated
Chamber	One sound-proof box is included to put ultrasonic processor into the chamberOne stainless steel lift platform is included to support liquid container at suitable heightTemperature sensor is installed inside chamber to touch with container to protect sample from over-heated
Product Dimensions	See illustration to the left for moreChamber: 270mm(L) x 240mm(W) x 430mm(H)Control Box: 370mm(L) x 240mm(W) x 230mm(H)Ultrasonic Head: 425mm(L)
Weight	50 lbs
Warranty	One year limited warranty with lifetime technical support
Compliance	CE Certified
