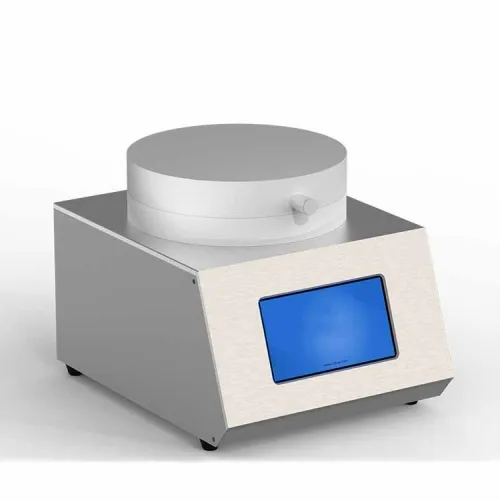

Programmable High Speed Vacuum anticorrosive Spin Coater

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Programmable High Speed Vacuum anticorrosive Spin Coater is Mainly used in liquid materials, gels, flowable pastes Its programmable control instantly provides controlled high-speed rotation and a fast but liquid, gel finish on the substrat.

Programmable High Speed Vacuum anticorrosive Spin Coater Advantages：
Programmable High Speed Vacuum anticorrosive Spin Coater is CE certified tabletop spin coating device dedicated to spin coat small substrates up to 100 mm diameter at Max. 10000 rpm. The spin head actuator is a precision DC servo motor with accurate speed and acceleration control. The substrate can be held by vacuum (for thinner objects). The device has a user-friendly keyboard and LCD display for programming various parameters up to 12 programs, 6 segments. Spin duration, spin speed, and acceleration can be programmed from the front panel. All components in the device are corrosion protected to make it cleanroom compatible.

High Speed Vacuum anticorrosive Spin Coater Main Features:
1. Vacuum adsorption method to fix the sample, easy to operate
2. Use the positioning tool to easily place the sample in the center position to reduce the vibration caused by the eccentricity or the flying piece
3. According to the sample specifications, different suction cups can be used, and the replacement is convenient and simple.
4. There are 12 sets of procedures to ensure the consistency and uniformity of the coating thickness.
5. The degree of vacuum can reach -0.05MPa
6. Accept substrates from 5 mm to 5 inches
7. PP chamber is used for anti-corrosion operation.
8. An air inlet at the top of the cover that can be filled with inert gas during the coating process, including a 20 ml plastic syringe
9. Ar gas can be used (the vacuum pump must be outside the glove box)
10. Safety interlock is integrated in the cover

High Speed Vacuum anticorrosive Spin Coater Technical Parameters：

Motor power	350w
Speed range	Programmable speed of 500~10000 rpm
Program operation	12 sets of programs can be stored, each set contains 6 running stages
Increase and decrease rate setting range	100rpm/s-2000rpm/s
Time range	0-60s
Suction cup	Φ19mm, Φ60mm
This machine can be equipped with heating function	heating range RT-100°C
Input Power	AC 220V (Please email us for AC 110V Version) 1000 W total for oilless pump and spin cater 24VDC high speed motor
Shipping Weight	46 kg (100 lbs)
Shipping Dimensions	40"(L) x 30"(W) x 30"(H)
Warranty & Compliance	One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Product Dimensions	450mm Depth ×280mm W ×340mm H

High Speed Vacuum anticorrosive Spin Coater Installation Conditions:

This equipment is required to be used at an altitude of 1000m or less, a temperature of 25°C±15°C, and a temperature of 55% Rh±10%Rh.
Water	Equipment is equipped with inlet and outlet
Electricity	AC220V 50Hz, must have good grounding
Gas	no need
Workbench	size 600mm600mm700mm, bearing weight 50kgs or more
Ventilation	need
