Compact Vacuum Spin Coater with Vacuum Chucking HS-Sp4

Basic InfoModel NO.: HS-SP4Coating: SpinningCertification: CEMax. Speed: 10,000 RpmWarranty: 1 YearTransport Package: Wooden CaseOrigin: ChinaType: Spin CoaterSubstrate: CeramicCondition: NewMax Spin Time: 3,000 STrademark: cykySpecification: spin coaterHS Code: 848610900

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: HS-SP4
Coating: Spinning
Certification: CE
Max. Speed: 10,000 Rpm
Warranty: 1 Year
Transport Package: Wooden Case
Origin: China
Type: Spin Coater
Substrate: Ceramic
Condition: New
Max Spin Time: 3,000 S
Trademark: cyky
Specification: spin coater
HS Code: 8486109000

Product Description

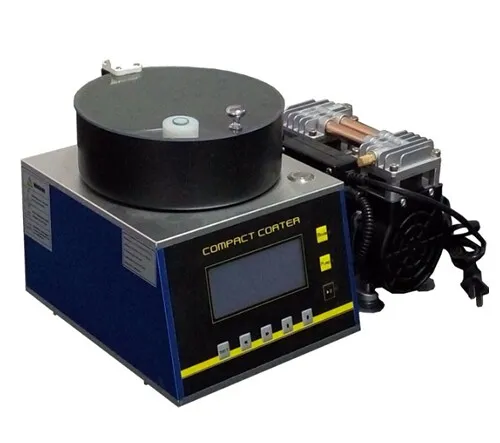

compact vacuum spin coater
Description of the spin coater:
CY-SP4 spin coater is a high performance compact spin coater. It is designed for high uniformity thin material coatings. With its small footprint, the spin coater can be installed in a fume hood or a glove box. The upgraded program can store up to five recipes and each recipe could be edited with five spin steps.

Specification of the spin coater:

Model	HS-SP4
Max Spin Speed	10,000 RPM
Speed Resolution	1 RPM
Max Spin Time	3,000 S
Time Resolution	1 S
Chuck diameter	5 inches (according to customer's requirement)
Max Ramp Rate	10,000 RPM/S
Dimensions	210 mm (W) x 265mm (D) x 215mm (H)
Weight	6 Kg
Power	100-120V,1 Phase,200W(110V) 200-230V,1 Phase,200W(220V)
Required Vacuum	0.06-0.09Mpa,Minimum 15L/Min flow rate
Vacuum Tubing	4mm ID, 6mm OD
Fuse	2 A(installed)
Warranty	1 year
HS code	8486109000
