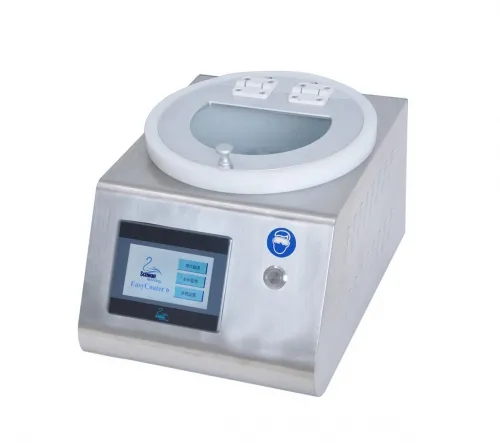

4.3" LCD Touch Panel Programmable Control Vacuum Spin Coater for 10-150mm wafter HS-EZ6

Features1.100w brushless dc motor,single chip microcomputer control2.High-definition 4.3” display3.Supporting wafer from 1cm-150mm(6”)4.Pre-set single or multi-step coating operate5.Prevent glue blocking design6.PP anti- corrosion chamber, replaceable7.HDPE vacuum adhesive

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1.100w brushless dc motor,single chip microcomputer control
2.High-definition 4.3” display
3.Supporting wafer from 1cm-150mm(6”)
4.Pre-set single or multi-step coating operate
5.Prevent glue blocking design
6.PP anti- corrosion chamber, replaceable
7.HDPE vacuum adhesive disc

Model No.	HS-EZ6
Display	4.3” LCD Touch Panel
Sample range	10-150mm
Speed resolution	±1RPM
Rotating speed	100~12000RPM
Accelerated speed	100~3000rpm/s
Single step timing	0.1~3000s
Control	10 sets programmable control,10steps
Motor power	Brushless DC Motor 100w
Vacuum pump	Oiless vacuum pump 15L/min
Working voltage	AC 220V, 50Hz,5A
Dimension	358256258mm
