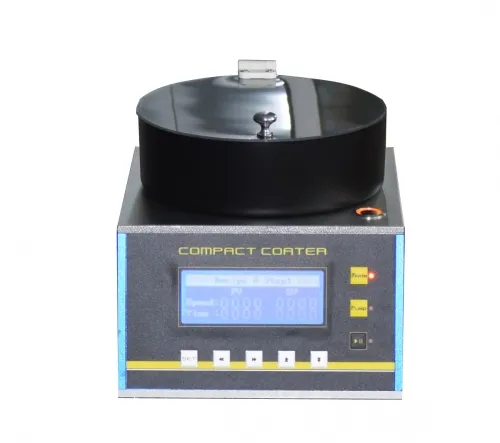

Compact vacuum spin coater with oiless vacuum pump HS-EZ4

Features1.75w brushless dc motor,single chip microcomputer control2.High-definition display3.Pre-set single or multi-step coating operate4.Prevent glue blocking design5.PP anti- corrosion chamber, replaceable6.HDPE vacuum adhesive discModel No.EZ4

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1.75w brushless dc motor,single chip microcomputer control
2.High-definition display
3.Pre-set single or multi-step coating operate
4.Prevent glue blocking design
5.PP anti- corrosion chamber, replaceable
6.HDPE vacuum adhesive disc

Model No.	EZ4
Chamber dimension	Φ200mm
Maximum sample	10mm-100mm
Speed range	100~9999rpm adjustable
Accelerated speed	100~9999rpm/s
Speed resolution	1rpm
Speed accuracy	< ±5rpm
Control	5 sets programmable control,each sets with 5 steps
Motor power	Brushless DC Motor 75w
Working voltage	AC 110-220V, 50Hz
Outer dimension	250210200mm
