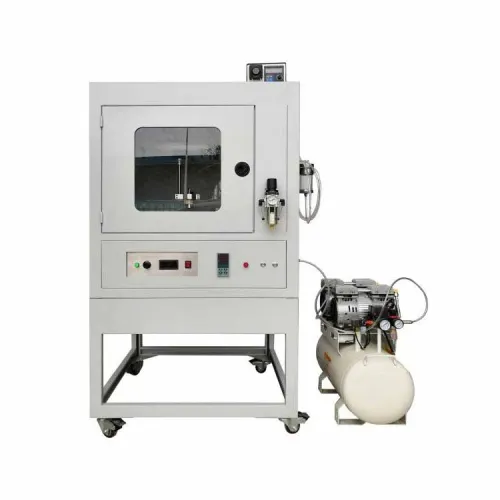

Large floor-stand automatic ultrasonic spray pyrolysis coating unit

Large automatic ultrasonic spray pyrolysis coating unit provides expanded capacity and increased travel area for the spray head. It also provides a larger heating platform to spray coat substrates that are larger than the standard application. This model

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Large floor-stand automatic ultrasonic spray pyrolysis coating unit can be separated from the bottom shelf section for use as a table top unit. This unit also provides for Nitrogen purging of the enclosure. The parameters of the ultrasonic spray pyrolysis ( USP) equipment, like dispensing rate of the solution and the speed of spray head movement, can be precisely controlled by program. A positive displacement pump controlled by the stepper motor and microprocessor is used to dispense solution as per requirement. The ultrasonic spray head provides thinner particle coating and its movement is controlled by the stepper motor driven linear stages in X and Y direction to ensure uniform coating. The temperature of the substrate heater plate is controlled independently through a dedicated controller.

Large floor-stand automatic ultrasonic spray pyrolysis coating unit specifications:

Power Input	Single phase 208 - 240VAC, 50/60Hz
Actuator	Stepper motor, 24VDC
Dispensing	•Three Spray heads are included: oUltrasonic spray head: for thinner film coating oCompressive air spray: for thick film o20ml Syringe Pump with compressive air for the expensive solution of the thick film. •Dispensing unit capacity: 50ml & 250ml ( two containers included ) •Dispensing rate: 1-10ml / sec. adjustable via software. •One brand new laptop computer or one Surface Pro with pre-installed software is available for controlling.
Sprayer	•Ultrasonic atomizer nozzle: 40 KHz, 130W •Producing a fine spray of droplets of 50 microns average size •Fluid viscosity range: 1 - 50 mPa•s (cP) •Sprayer traverse: X - Y 250mm max. •Drive speed X axis (min-max): 10-800mm / sec •Drive speed Y axis (min-max): 1-12mm / sec
Pressure Regulator & Gauge	•Pressure regulator with digital gauge is installed on the machine for precise air pressure control. •Digital pressure gauge is operated by 3V lithium battery ( included )
Air Compressor	•Compressed air with a pressure of ~ 4 bar is required for normal operation of the unit •One Compact air compressor is included for immediate use •Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Substrate base plate	•Dimension: 250×250mm •Max. temperature: 500℃ •Digital temperature controller
Communication Port	RS232 (computer with windows OS can be used to control the operations through this serial port)
Warranty	One year limited with lifetime support
Compliance	CE certified
